Synergy 8580-04 Long Arm Upgrade Kit
by Synergy
SKU SYN-8580-04
Original price
$2,450.00
-
Original price
$2,450.00
Original price
$2,450.00
$2,450.00
-
$2,450.00
Current price
$2,450.00
Ships Directly From The Manufacturer
The Synergy 8580-04 Long Arm Upgrade Kit from GAP is designed to improve your 2003-2013 Dodge Ram 2500/3500 suspension geometry while off-roading. Shorter control arm angles are hard on a vehicle's suspension components which leads to poor vehicle handling, limited suspension travel, and an overall bumpy ride as the shocks produce a choppy movement as you drive. By using the Synergy long arm kit a better angle is achieved, which offers more range of motion and doesn't put undue stress on the truck's suspension components.
Features:
- Synergy Dual Durometer Teflon Lined Bushings
- Powder Coat Finish For Maximum Durability And Corrosion Resistance
- Synergy Double Adjuster Sleeve & Pinch Bolt Assembly Allows For Easy Adjustment Of Control Arms
- Long Arm Kit Was Designed Using OEM CAD Files For A Perfect Fitment & Enhanced Vehicle Drivability
- 100% Bolt On Components Assures An Easy, Trouble Free Installation With The Use Of Basic Hand Tools
- Can Be Installed On Anything From A Completely Stock Truck To A 6" Lift And 12" Stroke 3.0" Diameter Shocks
Kit Specifications:
- Upper Control Arms Are Manufactured From High-Quality Crush Resistant 1.75 X .188 Wall 1026 DOM Tubing
- Lower Control Arms Are Manufactured From High-Quality Crush Resistant 2.0" X .250 Wall 1026 DOM Tubing

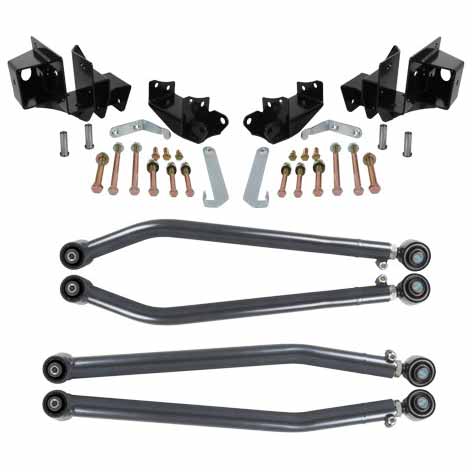

8580-04 Long Arm Upgrade Kit Includes:
8581 - Long Arm Bracket (Pair)
8583 - Front Lower Control Arms (Pair)
8585 - Front Upper Control Arms (Pair)
8583 - Front Lower Control Arms (Pair)
8585 - Front Upper Control Arms (Pair)
Notes:
To prevent front tires from rubbing the control arms at full steering lock, we recommend the following wheel/tire combinations:
Most* 37-inch tires - wheels must have no more than 4.5 inches of backspacing
Most* 40-inch tires - wheels must have no more than 3.75 inches of backspacing
* Same size tires will dimensionally vary from manufacturer to manufacturer.
Most* 37-inch tires - wheels must have no more than 4.5 inches of backspacing
Most* 40-inch tires - wheels must have no more than 3.75 inches of backspacing
* Same size tires will dimensionally vary from manufacturer to manufacturer.
Due to the additional weight of megacab truck configurations, Synergy recommends all gas megacab trucks use Heavy Duty (HD) front coil springs instead of Light Duty (LD) front coil springs. LD front coil springs will give less lift than advertised.
Upgrading to long arms requires removal of the stock control arm brackets at the frame.
Applications:
2003-2013 Dodge Ram 2500 4WD2003-2013.5 Dodge Ram 3500 4WD
2006-2008 Dodge Ram 1500 Mega Cab 4WD
Note: 2013 Dodge Ram 3500's were a split year for production. If your truck has radius arms use Dodge Ram 2014+ pages To prevent front tires from rubbing the control arms at full steering lock, Synergy recommends the following wheel/tire combinations: *Same size tires will dimensionally vary from manufacturer to manufacturer. Most* 37 inch tires - wheels must have no more than 4.5 inches of backspacing Most* 40 inch tires - wheels must have no more than 3.75 inches of backspacing Same size tires will dimensionally vary from manufacturer to manufacturer. Due to the additional weight of megacab truck configurations, Synergy recommends all gas megacab trucks use Heavy Duty (HD) front coil springs instead of Light Duty (LD) front coil springs. LD front coil springs will give less lift than advertised Upgrading to long arms requires removal of the stock control arm brackets at the frame
