Synergy 8650-12 2.5" Leveling Kit
by Synergy
SKU SYN-8650-12
Original price
$1,500.00
-
Original price
$1,500.00
Original price
$1,500.00
$1,500.00
-
$1,500.00
Current price
$1,500.00
Ships Directly From The Manufacturer
Level your 2005-2023 Ford F-250/350 with the Synergy 8650-12 Leveling System from GAP. This system lifts the front of the truck 2.5" and includes all the components necessary to ensure your truck rides and handles better than stock. The springs are progressively wound and when matched with the Fox shocks provide a soft ride while increasing bottoming resistance and allows for 9 3/4" of travel. The increased travel Fox shocks are protected from damage by the 1' Synergy bump stop spaces. The factory brake lines are retained and allow for the increase in height by utilizing the Synergy brake line relocation brackets. By using these brackets factory ABS clips are preserved so there is no need to bleed the brakes after installation. Caster shims are provided to maintain the vehicles factory handling and steering response after leveling. The Synergy Ford leveling system allows up to 37-inch tire with correct backspacing.
Features:
- Increased Travel
- No Loss In Towing Capacity
- Increased Bottoming Resistance
- Increases Ride Comfort And Control
- Maintains Stock Driving Characteristics
- Will Allow Installation Of Up To 37 Inch Tires
- Raises The Front Suspension To Level The Truck
- CNC Machined 6061-T6 Aluminum Bump Stop Spacers
- Bolt On Installation; No Modifications Required To Install
- Affordable Quality And Performance; Proudly Made In The USA
- Front Wheel Travel Is Increased 30 Percent From 7-3/4-Inches To 9-3/4-Inches
- Caster Shims Are Made From High Strength 1045 Steel And Zinc Plated For Corrosion Protection
- Brake Line Relocation Brackets Are Laser Cut And Zinc Plated For A Precise Fit And Prolonged Life
- Coil Springs Feature An Abrasion-Resistant Powder Coat Finish For Maximum Durability And Corrosion Resistance
- Progressive Wound Multi Rate Coil Springs Are Manufactured Using The Latest In CNC Hot Winding Technology For Optimized On And Off Road Performance
- The Coils Are Designed To Be Able To Set Solid (Fully Collapse) Without Overstressing The Material And Are Pre-Set From The Factory Meaning The Springs Will Never Settle Or Sag

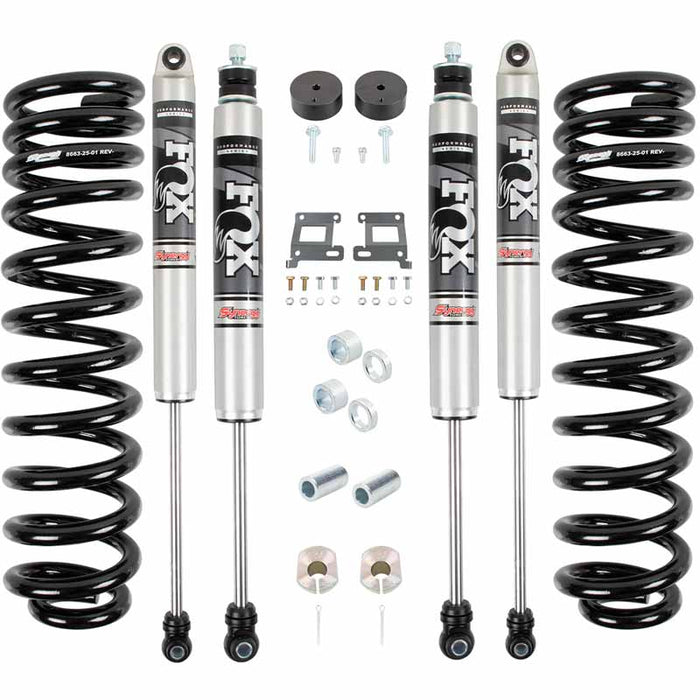

8650-12 - 2.5" Leveling Kit Includes:
(1) 8664-25 2.5" Leveling Springs, Pair(2) Fox Front IFP Smooth Body Shocks
(2) Fox Rear IFP Smooth Body Shocks
(1) 8657-01 1" Front Bump Stop Spacers
(1) 8612-24 Caster Sleeve Kit
(1) 8673-01 Sway Bar End Link Spacer Kit
(1) 8682-01 Front Brake Line Relocation Brackets
(1) 8650-01 Fox Shock Eyelet Sleeve
Notes:
Fits 35x12.50 with no trimmingMinor fender trimming needed to fit 37x12.50 depending on wheel backspacing.
Applications:
2005-2023 Ford Super Duty F-250 4WD (6.0/6.4/6.7 Powerstroke)2005-2023 Ford Super Duty F-350 4WD (6.0/6.4/6.7 Powerstroke)
