Synergy 8725-00 Heavy Duty Steering Kit
by Synergy
SKU SYN-XDK223
Original price
$1,100.00
-
Original price
$1,100.00
Original price
$1,100.00
$1,100.00
-
$1,100.00
Current price
$1,100.00
Ships Directly From The Manufacturer

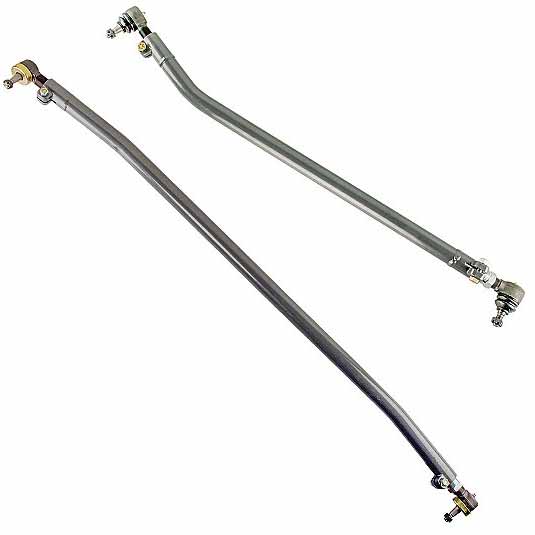

GAP has the Synergy 8725-00 Heavy Duty Ram Steering Kit that will enhance the steering on your 2014-2024 Ram 2500/3500 4WD. This steering kit features a design and components specific to the new radius arm Ram Truck platform. A direct bolt-in replacement for the stock drag link and tie rod, this steering kit is an immediate upgrade in steering feel and strength. With no wheel size requirements, this kit can be installed on a stock Ram with stock wheels and tires. The tie rods are made from heat treated chromoly for maximum strength. The low misalignment dust boots eliminate tie rod flop and the drag link is made from high quality DOM steel tubing for maximum strength.
Features:
- Eliminates Unwanted Drag Link Flop
- Compatible With Stock Wheels And Tires
- Drag Link Length Adjustable On The Vehicle
- Tie Rod Is Over 40% Stronger Than The Stock Tie Rod
- No Factory Drag Link Components Need To Be Reused
- Drag Link Is CNC Formed From 1.50-Inch X .250 Wall DOM Tubing
- Includes Synergy HD Metal On Metal Tie Rod Ends With Oversized 1-Inch Shank
- Low Misalignment Tie Rod End Boots Are Used To Prevent Unwanted Tie Rod Flop
- Eliminates The Steering Dead Spot Commonly Associated With Hydro Assist Setups
- Drag Link Bolts Right Into The Factory Mounts With No Additional Wheel Requirements
- Abrasion-Resistant Powder Coat Finish For Maximum Durability And Corrosion Resistance
- Single Plane Tie Rod End Used On The Pitman Arm Side To Prevent Unwanted Drag Link Flop
- Synergy Heavy Duty Metal On Metal Tie Rod Ends Are Stronger And More Durable Than Stock
- Both Ends Of The Bar Use Pinch Bolts Instead Of Jam Nuts To Simplify Installation And Adjustment
- 100% Bolt-On Components Assures An Easy, Trouble Free Installation With The Use Of Basic Hand Tools
- Synergy Double Adjuster Sleeve Allows Adjustment Of Drag Link Length Without Removing It From The Vehicle
Min/Max Length:
Measured in a straight line from center of tie rod end to center of tie rod end:
Drag Link:
Min collapsed length: 39.13"
Max extended length: 41.50"
Tie Rod:
Min collapsed length: 60.00"
Max extended length: 62.75"
Drag Link:
Min collapsed length: 39.13"
Max extended length: 41.50"
Tie Rod:
Min collapsed length: 60.00"
Max extended length: 62.75"
Note:
Tie Rod - Steering Stabilizer Clamp 8703-01 required to retain steering stabilizer.
Synergy High Performance Grease recommended (4119) to be used with all Tie Rod Ends.
Recommended Steering Stabilizers: 6401-01 (IFP), 985-02-135 (TS), 983-02-158 (ATS).
