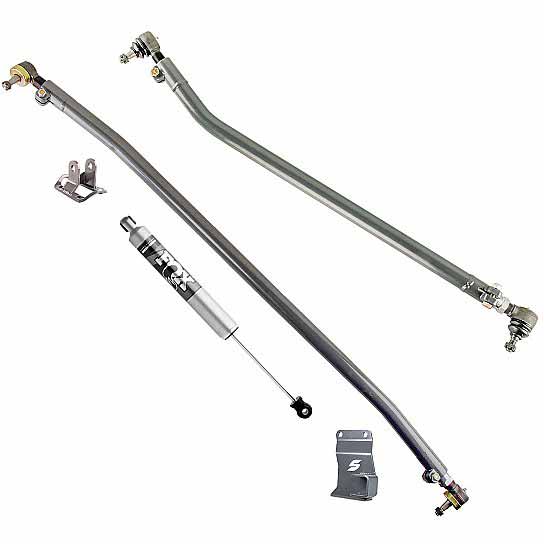

Synergy 8725-01 Heavy-Duty Steering Kit With Fox IFP Stabilizer

Synergy 8725-01 Heavy-Duty Steering Kit With Fox IFP Stabilizer

by Synergy
SKU SYN-XDK224
$1,520.00 - $1,520.00
$1,520.00
$1,520.00 - $1,520.00
$1,520.00
Ships Directly From The Manufacturer
Say goodbye to the factory steering in your 2014-2024 Ram 2500/3500 with the Synergy 8725-01 Heavy-Duty Steering Kit With Fox IFP Steering Stabilizer from GAP. All new design and components specific to the new radius arm Ram Truck platform. Direct bolt-in replacement for the stock drag link and tie rod for an immediate upgrade in steering feel and strength. No wheel size requirements! Can be installed on a stock Ram with stock wheels and tires. Tie rod is made from heat treated chromoly for maximum strength. Low misalignment dust boots eliminate tie rod flop. Drag link is made from high quality DOM steel tubing for maximum strength. You will not find a better steering kit on the market! The Single stabilizer steering kit utilizes a stabilizer relocation bracket increasing the clearance for the upgraded Synergy Tuned Fox IFP stabilizer to fit perfectly on your Ram. The reinforced 1/4" bracket exceeds the factory rigidity while the dual dampeners takes you to the next level! This kit features (2) Synergy stabilizer clamps that are CNC machined from hardened steel to withstand on and off road conditions. Kit includes 100 percent bolt-on components to ensure an easy, trouble free installation with the use of basic hand tools.


Features:
  • Eliminates Unwanted Drag Link Flop
  • Compatible With Stock Wheels And Tires
  • Drag Link Length Adjustable On The Vehicle
  • Tie Rod Is Over 40% Stronger Than The Stock Tie Rod
  • No Factory Drag Link Components Need To Be Reused
  • No More Bent Drag Links And Constantly Having To Align Your Vehicle
  • Powder Coat Finish For Maximum Durability And Corrosion Resistance
  • Include Grease Fittings/Replaceable Dust Boots For Ease Of Maintenance
  • Stabilizer Bracket Allows Mounting Of Steering Stabilizer To Synergy Tie Rod
  • Improves Strength And Steering Feel And Eliminates Any Chance Of Bending
  • Includes Synergy HD Metal On Metal Tie Rod Ends With Oversized 1-Inch Shank
  • Drag Link Bolts Right Into The Factory Mounts With No Additional Wheel Requirements
  • Single Plane Tie Rod End Used On The Pitman Arm Side To Prevent Unwanted Drag Link Flop
  • Synergy Heavy Duty Metal On Metal Tie Rod Ends Are Stronger And More Durable Than Stock
  • Both Ends Of The Bar Use Pinch Bolts Instead Of Jam Nuts To Simplify Installation And Adjustment
  • Synergy Double Adjuster Sleeve Allows Adjustment Of Drag Link Length Without Removing It From The Vehicle
  • Low Misalignment Tie Rod End Boots Are Used To Prevent Unwanted Tie Rod Flop. Eliminates The Steering Dead Spot Commonly Associated With Hydro Assist Setups


Kit Specifications:
  • Drag Link Is CNC Formed From 1.50" X .250 Wall DOM Tubing
  • Steering Stabilizer Bracket CNC Formed From 3/16" Steel
  • Steering Stabilizer Bracket Mounting Bolt Has Been Rotated 90 Degrees To Eliminate Any Binding
  • Steering Stabilizer Bracket Allows Fitment Of Steering Stabilizers That Use A 1/2" Mounting Bolt
  • Steering Stabilizer Bracket Designed To Fit 1-3/4" Diameter Tie Rods
  • Tie Rod Is CNC Formed From 1.75" X .188 Wall Seamless Chromoly Tubing And Heat Treated After Forming
  • Tie Rod Has An Outer Diameter (OD) Of 1.75" And Must Be Used With Our Steering Stabilizer Clamp


Min/Max Length:
Measured in a straight line from center of tie rod end to center of tie rod end
Drag Link:
Min collapsed length: 39.13"
Max extended length: 41.50"
Tie Rod:
Min collapsed length: 60.00"
Max extended length: 62.75"

8725-01 Heavy-Duty Steering Kit Includes:
(1) 8701-01- Drag Link
(1) 8702-01 - Tie Rod
(1) 4050-75 - 1.75" Stabilizer Clamp
(1) 8703-02 - Stabilizer Relocation Bracket
(1) 6401-01 - Synergy Tuned Fox IFP Stabilizer

Notes:
Drag Link - Replacement Tie Rod Ends:
(1) 4134-L
(1) 4160-L
Tie Rod - Replacement Tie Rod Ends:
(2) 4138-L
Tie Rod - Steering Stabilizer Clamp 8703-01 required to retain steering stabilizer
Synergy High Performance Grease recommended (4119) to be used with all Tie Rod Ends
Synergy Premium Copper Infused Anti-Seize (4118) to be used with all threaded components

Applications:
2014-2024 Ram 2500 4WD
2014-2024 Ram 3500 4WD
