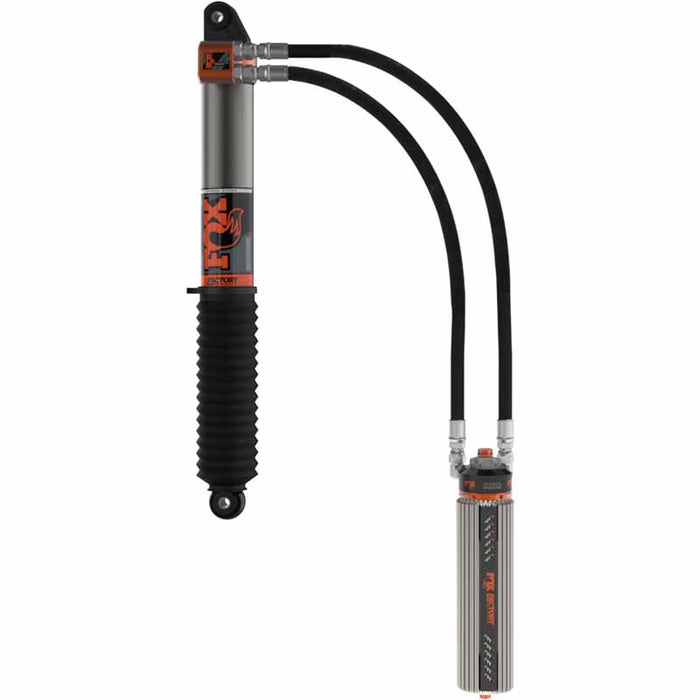

Fox 883-26-105 3.0 Factory Race Series Adjustable Reservoir Shock (Pr)
by Fox
SKU FOX-883-26-105
Original price
$3,499.95
-
Original price
$3,499.95
Original price
$3,499.95
$3,499.95
-
$3,499.95
Current price
$3,499.95
Ships Directly From The Manufacturer
The Fox 883-26-105 3.0 Factory Race Series Adjustable Reservoir Shock (Pr) from Guaranteed Auto Parts delivers position-sensitive damping technology, Dual Speed Compression (DSC) adjustment, and high-speed ready performance in a bolt-on kit.
Patented Internal Bypass technology allows for multiple zones of damping control. The result is a comfortable, confident ride with increased damping force through rough terrain. Internal bypass shocks produce more force progressively to control hard bottom-outs, prevent harsh top-outs, and provide an initial catch for landing. Shock fluid bypasses the main piston through a series of bleed holes in the ride zone. As the shock extends past the ride zone in rebound or compression, the bleed holes terminate, forcing fluid through the main piston.
A Recirculating Reservoir Bridge enables continuous exchange of shock fluid between the finned external reservoir and body using checked ports, keeping shock temperatures cool for better performance. Type III anodization prevents corrosion and wear of the 3-inch diameter aluminum bodies. The DSC adjuster allows you to dial in your truckfor load, environment, and driving style.
FOX Internal Bypass shocks deliver the support and confidence you need while driving Mach-3 through rugged terrain. Experience race-bred performance next time you leave the pavement.
Specifications:
Extended: 27.730
Compressed: 17.160
Travel: 10.320
Top Mount: Eyelet
Bottom Mount: Eyelet
Patented Internal Bypass technology allows for multiple zones of damping control. The result is a comfortable, confident ride with increased damping force through rough terrain. Internal bypass shocks produce more force progressively to control hard bottom-outs, prevent harsh top-outs, and provide an initial catch for landing. Shock fluid bypasses the main piston through a series of bleed holes in the ride zone. As the shock extends past the ride zone in rebound or compression, the bleed holes terminate, forcing fluid through the main piston.
A Recirculating Reservoir Bridge enables continuous exchange of shock fluid between the finned external reservoir and body using checked ports, keeping shock temperatures cool for better performance. Type III anodization prevents corrosion and wear of the 3-inch diameter aluminum bodies. The DSC adjuster allows you to dial in your truckfor load, environment, and driving style.
FOX Internal Bypass shocks deliver the support and confidence you need while driving Mach-3 through rugged terrain. Experience race-bred performance next time you leave the pavement.
Features:
- Consistent Damping Forces
- Cooler Shock Temperatures
- Provides A Level Ride Height
- Eliminates Vehicle's Forward Rake
- Removes Dead Space From Shock Body
- External Reservoirs Increase Oil Capacity
- Increases Suspension Articulation Of Your Truck
- Decreases Harshness Associated With Nitrogen Ramp-Up
- Each Reservoir Features A Dual Speed Compression (DSC) Adjuster
- High-Flow Piston Manages Stability Through All Types Of Terrain
- Improve On-Road Manners While Remaining Comfortable And In Control
- Performance Elite Shocks Provide Versatility To Navigate Rough Terrain
- Type III Anodization Prevents Corrosion And Wear Of 2.5-Inch Aluminum Bodies
- Designed And Engineered To Support Damping Of Your Rig For Various Activities
- Quickly Adapt Shocks For Load, Environment, And Driving Style Using DSC Adjusters
- Strategically Mounted To Eliminate Interference With Aggressive Tires At Full Lock
Specifications:
Extended: 27.730
Compressed: 17.160
Travel: 10.320
Top Mount: Eyelet
Bottom Mount: Eyelet
WARRANTY INFO:
1 Year Limited
Note: AT4 Model Fits 0-1" Lift Only | Non-AT4 requires a minimum of 2" bump stop spacer and a 1" lift block
