BD Diesel 1030606-1/2 BD Xtrude Transmission Cooler with Fan - Complete Kit 1/2in Lines

SKU BDD-1030606-1/2
Original price $699.95 - Original price $699.95
Original price
$699.95
$699.95 - $699.95
Current price $699.95
10 In Stock At Warehouse
Get what your vehicle needs when you purchase the BD-Power 1030606-1/2 Auxiliary Transmission Cooler from GAP. The Coolest Xtruded Transmission Oil Cooler. The 200 Micro Extruded passages provide a large surface area to transfer heat for external air flow cooling while turbulent oil flow design promotes a more complete cooling. Large 5/8-inch ports prevent inlet/outlet restriction and furnace brazed rails have been tested to 300psi of pressure. The thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan offers ultimate automatic oil temperature control. This combination gives BD's Xtruded Transmission Oil Cooler a rating of 33,930 BTU/HR and in excess of 30,000 GVW! Xtruded Transmission Oil Cooler packages come complete with all fittings, clamps, hoses, hardware and a Build-It-Yourself galvanized bracket kit for quicker and cleaner installation - no wasting time fabricating brackets out of scrap metal. The pre-wired loomed harness with fuse and relay comes with OEM-style sealed connectors to resist elements and give a factory-like install look.

Features:
  • 22% more cooling over other designs

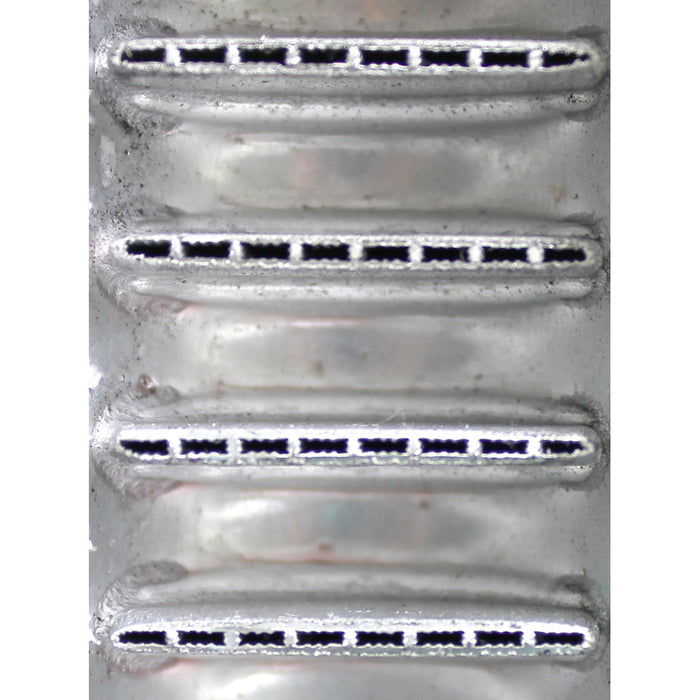

  • 200 Micro Extruded passages

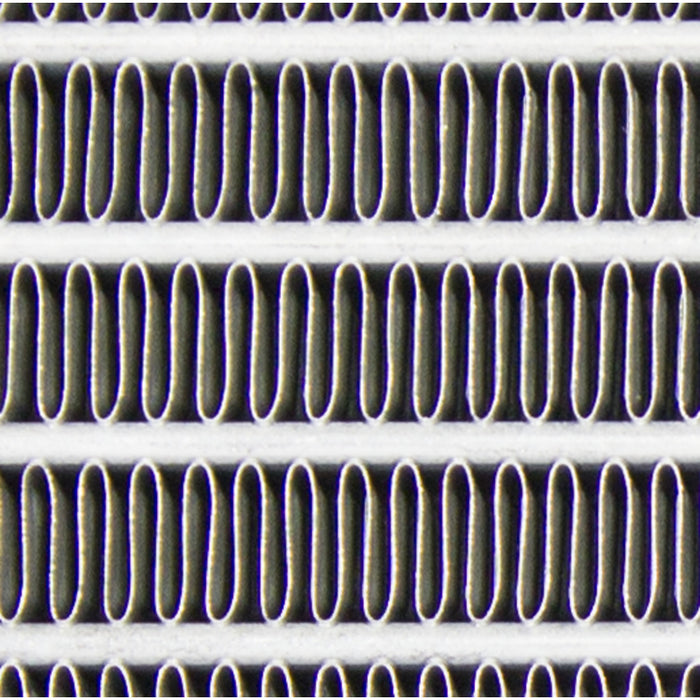

  • Large surface area to transfer heat for external air flow cooling
  • Turbulent oil flow design promotes a more complete cooling
  • Large 5/8-inch ports prevents inlet/outlet restriction
  • Furnace brazed rails have been tested to 300psi of pressure
  • Thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan
  • 33,930 BTU/HR and in excess of 30,000 GVW
  • Kits complete with all fittings, clamps, hoses and hardware

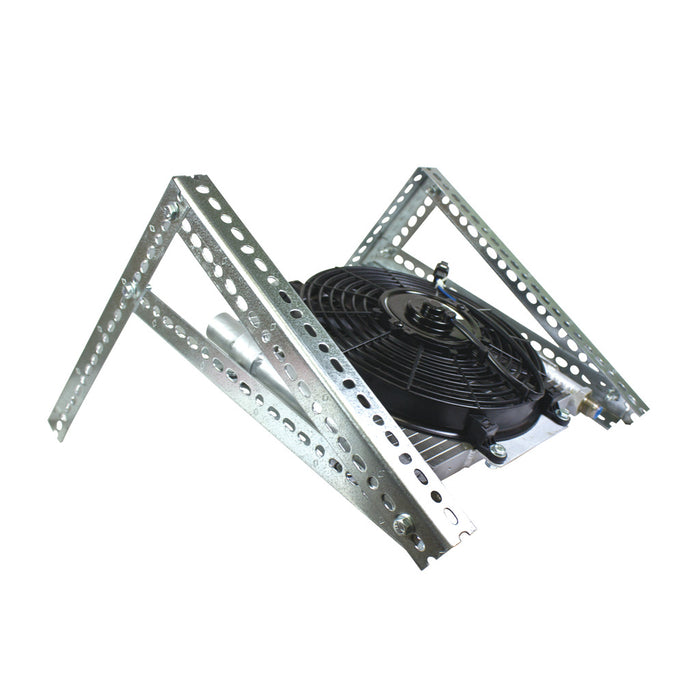

  • Build-It-Yourself galvanized bracket kit for quick and easy installation - no wasting time fabricating brackets out of scrap metal
  • The pre-wired loomed harness with fuse and relay comes with plug-in connectors
  • Dodge 47RH / 47RE / 48RE / 68RFE - (1/2-inch Cooler Lines)
  • Ford 5R110/6R140 - (1/2-inch Cooler Lines)

Kit Includes:
  • Fittings, Clamps & Hoses
  • DIY Galvanized Bracket Kit
  • 180-Degree Auto Temp Switch
  • Fused Wiring Harness & Relay

Applications & Sizes:
1994-2016 Dodge 47RH, 47RE, 48RE, 68RFE - 1/2" Tube

WARRANTY INFO:
1 Year

Note: This Auxiliary cooler is designed as an add-on. It is not a replacement for your factory cooler.
The temperature sensor is designed to turn the fan on at 180 degrees F and turn off at 160 degrees F.
