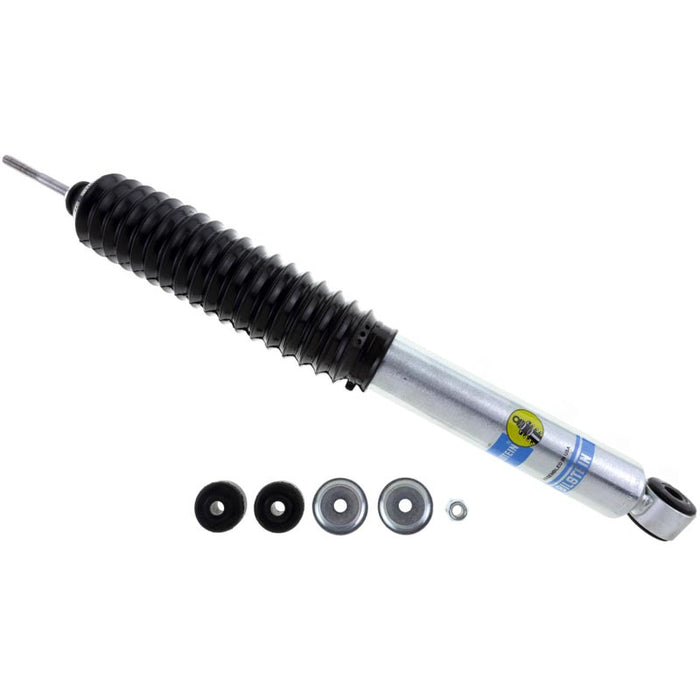

Bilstein 24-187183 B8 5100 Series Shock Absorber

Bilstein 24-187183 B8 5100 Series Shock Absorber

by Bilstein
SKU BIL-24-187183
$123.00 - $123.00
$123.00
$123.00 - $123.00
$123.00
Product Availability
  • Warehouse
    Usually ships out same or next business day
    In Stock
    10+ available
Bilstein 5100 Series Shock Absorbers are high gas pressure monotube shocks expertly created for lifted pickups, SUVs and Jeeps. The shocks feature a 46mm digressive piston with self-adjusting deflective disc valving. 5100 Series Shock Absorbers offer super damping ability that makes them ideal for heavy hauling or occasional off-road use, while maintaining an exceptional street ride.

Specifications:
Part Number: 24-187183
Old Part Number: F4-BE5-E710-H1
Setting: 5100 Series
Position: Front
Front Spring Type: Torsion Bar
Rear Spring Type: Leaf
Descriptor: Excludes vehicles equipped with Quadrasteer; Front Lifted Height: 4-6"
Quantity Needed Per Vehicle: 2 (Sold Individually)
Finish: Zinc plated
Reservoir: No
Body Design: 46mm ID smooth body (Non-coilover)

Measurements:
Collapsed Length (IN): 13.52
Extended Length (IN): 21.46
Collapsed Length (MM): 343.3
Extended Length (MM): 545

Applications:
2001-2010 GM 2500/3500 HD (Non-Quadrasteer)

Note: *Lift Height is suggested by mfg. Due to the many different aftermarket suspension systems it is recommended that a measurement is taken for proper application.  A pin to eye shock is measured from the base of the stem where the mounting hardware rests to the center of the eyelet. Shock Absorbers sold individually.


WARRANTY INFO:
Limited Lifetime
