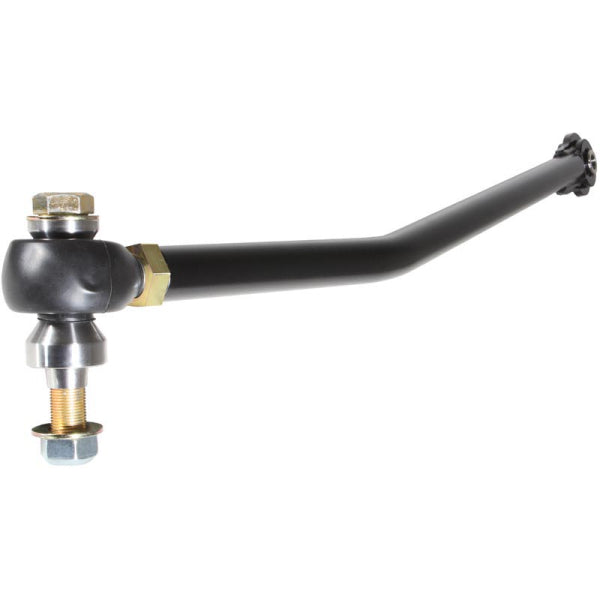

Carli Suspension CS-FATB-17 Adjustable Track Bar

The Carli Suspension Adjustable Track Bar CS-FATB-17 stands out as a critical yet often overlooked component when upgrading suspension systems in the F-250/350 4WD trucks. While many focus on lift kits for geometry correction, the track bar's importance cannot be understated - especially in lifted and leveled trucks. The Carli Track Bar is a game-changer, featuring robust 1.5" OD x 3/8" wall DOM construction that allows direct threading (no weld-in bungs) for a massive FK Bearing heim joint. At its heart is Carli's innovative Encapsulated Uniball (CUB Joint), which was designed with a fully welded and strap-gusseted housing, setting it apart from standard track bars.

The dual FK Bearing pivots on the Carli Track Bar ensure smoother suspension cycling without the binding issues found in factory bushings, providing excellent vibration damping to reduce road noise and extend the service life of the system. The Encapsulated FK Uniball was tested down to -110F and remained free of cracks or deformation while maintaining damping performance even under extreme cold. Both the Heim and Uniball joints are replaceable, allowing for cost-effective rebuilds rather than complete replacements. On the opposite end, the Carli Track Bar features a massive 1-1/4" FK Bearing heat-treated Chromoly Heim Joint sealed in a boot and secured with the Carli Jammit Nut. A tapered lock nut that offers 100% more clamping surface area than standard jam nuts, ensuring the Heim joint stays firmly in place.

The Carli Track Bar is designed to work seamlessly with Carli's 2.5" and 4.5" lift systems, ensuring compatibility with OEM steering geometry (no need for track bar or pitman arm drops). To accommodate different lift heights, the track bar includes various axle spacer configurations to adjust the lower pivot point, ensuring the factory steering arc is maintained. In simpler terms, the Carli Track Bar allows for precise adjustment to ensure minimal steering wheel feedback at both 2.5" and 4.5" lift heights.

The Carli Track Bar provides durability, vibration damping, geometry correction, and the ability to adjust to both lift heights, making it an essential upgrade. The Carli Adjustable Track Bar is the ideal choice for those seeking a more refined, durable, and performance-oriented solution for their lifted or leveled F250/F350 4x4 trucks.

Features:

• Massive Steering Upgrade: Enhanced Durability And Steering Precision
• Fully Rebuildable With Replaceable Components For Easy Maintenance
• Vibration Damping CUB Joint Designed To Reduce Road Noise And Enhances Ride Comfort
• Adjustable To Fit Multiple Lift Heights And Eliminates The Need For Travel-Limiting Drop Brackets
• Jammit Nut Tapered Lock Nut Design Provides Superior Clamping Force, Preventing Any Movement Of The Heim Joint
• Not Suitable For Stock-Height Trucks: Specifically Designed For Carli Lift Systems; Not Compatible With Drop Pitman Arms Or Aftermarket Track Bar Drop Brackets

Fitment:
2017-2019 Configurable: Compatible With Carli 2.5"-4.5" Lift Systems.
2020-2024 Configurable: Compatible With Carli 3.5"-5.5" Lift Systems.
