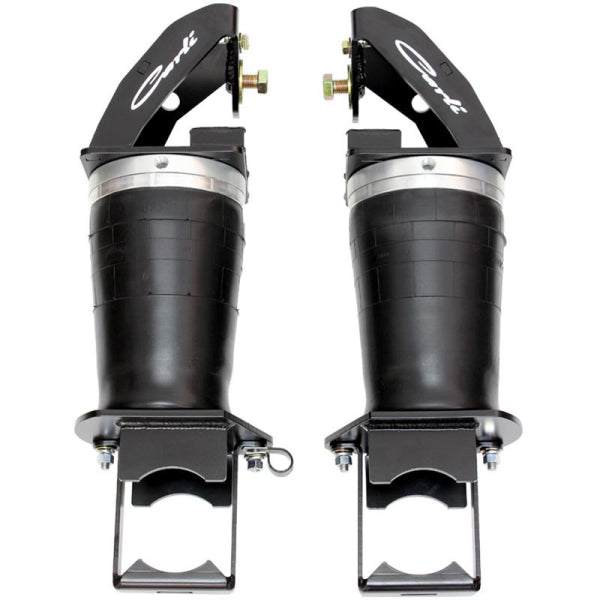

Carli Suspension CS-FLTB-05 Long Travel Air Bag System (4.5" Rear Lift)

The Carli Suspension Long Travel Air Bag System (4.5" Rear Lift) CS-FLTB-05 restores the load capacity and towing capability of your lifted F-250/350 4WD Super Duty without sacrificing ride quality and comfort. These airbags work with up to 12" of suspension travel and are 100% bolt-on DIY. You can install onboard air or use them manually. These are heavy-duty and rated up to 100 psi with a normal operating range of 5 to 75 psi, suitable for big 5th wheels, work trucks, campers, boats, bumper pull trailers and hauling.

Features:

• Supports Up To 12 Inches Of Travel
• Compatible With Rear Lifts That Level To A 4.5" Front Suspension System ONLY
• Restore Factory Payload When Used With Full Progressive Springs
• Adjustable Rear Loaded Height, 2,000lb Capacity Per Bag At 100psi
• Use Manually (Included) Or With Onboard Air System (Sold Separately - 1/4" Airline Compatible)

Note:
Ford Long travel airbags will ONLY work with 2" of rear lift on an F350 or 3" on an F250.
These cannot be used on a stock height truck.
Compatible with rear lifts that level to a 4.5" Front Suspension System ONLY
Carli Ford Super Duty Airbag Kits will only fit trucks with the 3.5" axle tube.
