Carli Suspension XDK264 3" Commuter 2.0 Leveling System
SKU CLI-XDK264
Original price
$2,050.00
-
Original price
$2,050.00
Original price
$2,050.00
$2,050.00
-
$2,050.00
Current price
$2,050.00
Product Availability
-
Ships Directly From The ManufacturerShips From Manufacturer
The Carli Suspension 3" Commuter 2.0 Leveling System CS-D3-COM-CS-10-D is designed for Ram 2500/3500 owners seeking the best on-road ride quality on a budget. The mono-tube, internal reservoir, Carli SPEC 2.0 boasts 6063 Aluminum construction, anodized body for corrosion resistance, 5/8" hardened steel chrome plated shaft, full serviceable & rebuildable and are built with 1-peice bushings in the 6061 Billet rod-ends. These shocks are spec'd with a premium 5WT oil to balance lubricity, consistent damping and the widest available range in temperature variation.
Your Ram will sit 2.5"-3" higher in the front (year/cab configuration dependent) with 50% more suspension travel than the factory platform thanks to the taller, lighter rate coil springs. When pairing added down-travel with the taller ride height, the position of the factory, front sway bar will need to be altered as well. For this, Carli offers extended, Sway Bar End Links. The End links are equipped with 1/2" FK Rod-Ends and in-house machined 17-4 stainless bodies that are extended over stock to reset the sway bar engagement points. Factory pillow-bushings are re-used to assemble the sway bar to the lengthened link.
When lifting the front end of a straight axle truck, the front axle is pulled off-center unless the proper linkages are addressed. Three inches of front lift equates to an axle shifted toward the driver's side 3/4" and back toward the cab 1/2". Although this is perfectly operable, Carli recommends the purchase of an adjustable track bar to shift the axle back toward the passenger side and provide a stronger link with less deflection for the lifted application, and a set of extended control arms to shift the axle forward to its new center of travel.
This system will fit up to a 35" tire with stock control arms (Carli recommend their extended, Mild Steel Control Arms) on wheels with 5.75-6" of backspacing. If running factory wheels, they recommend an All Terrain 35" tire to avoid rubbing. For 37" tire fitment, the Carli High-Clearance Control Arms and Adjustable Track Bar can be paired to a wheel with 5.75" of Backspacing. The more rubber, the better the small bump compliance will be at proper inflation pressures. The ride will firm up as you go larger in wheel diameter.
Required and Optional Parts to support this system:
Sway Bar Options (REQUIRED): CS-DEL-10 or CS-DEL-10-12MM or CS-DTSB3-03
Control Arms: CS-CA-MS-10 or CS-DBCA-10
Leaf Spring Options: CS-DPAP-03-D or CS-DFSP-10-D or CS-DFSP-10-D-HD
Long Travel Bags: CS-DLTB-03-4.0
Steering Stabilizer: CS-DLMSS-T or CS-DHMSS-T or CS-DSSOSK-T
Ball Joints: CS-DBJP-03
Your Ram will sit 2.5"-3" higher in the front (year/cab configuration dependent) with 50% more suspension travel than the factory platform thanks to the taller, lighter rate coil springs. When pairing added down-travel with the taller ride height, the position of the factory, front sway bar will need to be altered as well. For this, Carli offers extended, Sway Bar End Links. The End links are equipped with 1/2" FK Rod-Ends and in-house machined 17-4 stainless bodies that are extended over stock to reset the sway bar engagement points. Factory pillow-bushings are re-used to assemble the sway bar to the lengthened link.
When lifting the front end of a straight axle truck, the front axle is pulled off-center unless the proper linkages are addressed. Three inches of front lift equates to an axle shifted toward the driver's side 3/4" and back toward the cab 1/2". Although this is perfectly operable, Carli recommends the purchase of an adjustable track bar to shift the axle back toward the passenger side and provide a stronger link with less deflection for the lifted application, and a set of extended control arms to shift the axle forward to its new center of travel.
This system will fit up to a 35" tire with stock control arms (Carli recommend their extended, Mild Steel Control Arms) on wheels with 5.75-6" of backspacing. If running factory wheels, they recommend an All Terrain 35" tire to avoid rubbing. For 37" tire fitment, the Carli High-Clearance Control Arms and Adjustable Track Bar can be paired to a wheel with 5.75" of Backspacing. The more rubber, the better the small bump compliance will be at proper inflation pressures. The ride will firm up as you go larger in wheel diameter.
Required and Optional Parts to support this system:
Sway Bar Options (REQUIRED): CS-DEL-10 or CS-DEL-10-12MM or CS-DTSB3-03
Control Arms: CS-CA-MS-10 or CS-DBCA-10
Leaf Spring Options: CS-DPAP-03-D or CS-DFSP-10-D or CS-DFSP-10-D-HD
Long Travel Bags: CS-DLTB-03-4.0
Steering Stabilizer: CS-DLMSS-T or CS-DHMSS-T or CS-DSSOSK-T
Ball Joints: CS-DBJP-03
Features:
- Fits Up To 35" Tires
- Does Not Include Leaf Spring Option & Sway Bar Option
- Corrosion Resistant Aluminum Bodies Provide Long-Lasting Finish
- Carli-Tuned 2.0 Shocks Which Provide A More Comfortable On-Road Feel And Better Off-Road Performance

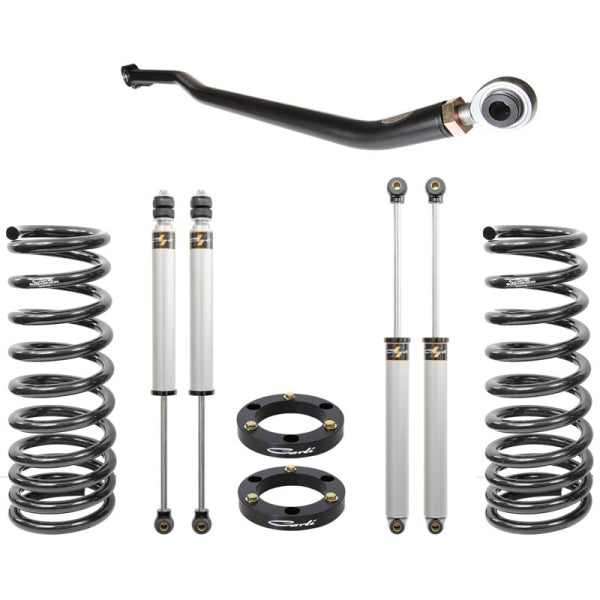

- System Includes Multi-Rate Front Coil Springs, Front And Rear Shock Package, Shock Tower Spacer, And Adjustable Track Bar
- Truck Will Sit 2.5-3" Higher (Year/Cab Configuration Dependent) & Wheel Travel Will Be Increased Thanks To The Taller, Lighter Rate Coil Springs
Note: This system is NOT compatible with trucks equipped with the factory auto-leveling air assist.
