Carli Suspension XDK277 2.5" Backcountry Leveling System

SKU CLI-XDK277
Original price $2,565.00 - Original price $2,565.00
Original price
$2,565.00
$2,565.00 - $2,565.00
Current price $2,565.00
Product Availability
  • Ships Directly From The Manufacturer
    Ships From Manufacturer
Upgrade your Dodge Ram 2500 4WD with the Carli Suspension 2.5" Backcountry Leveling System CS-DLVL-BC-CS-1419-D. The Backcountry System is designed for people seeking the best ride. With on and off-road quality, on a budget; basically, the Leveling Kit for those that want to have a little dirt-road fun in their 8,500lb truck without losing the on-road ride quality or usability for which the truck was designed. You're no longer limited to the highway while gravel roads become uninteresting as you can drive them at speed with one hand on the wheel. The 2.5" lift height doesn't require the front or rear geometry correction of Carli 3" Systems.

Utilizing SPEC 2.0" Diameter, Remote Reservoir shocks, Carli developed a tune that delivers all around comfort and ride quality designed for on-road, in town, highway, towing/hauling as well as slow to mid speed off road use. The remote reservoir Carli SPEC 2.0 boasts 6063 Aluminum construction, anodized body for corrosion resistance, 5/8" hardened steel chrome plated shaft, full serviceability & rebuilding ability and are built with 1-peice bushings in the 6061 Billet rod-ends. These shocks are spec'd with a premium 5WT oil to balance lubricity, consistent damping and the widest available range in temperature variation.

The rear shocks are also included with this system and have been custom tuned to maximize the ride quality for the factory rear coil springs. As the rear springs remain unmodified, load capacity is maintained while predictability is improved. For those that aren't looking for massive increase in travel or big shocks but still desire a level stance and improved ride quality and handling characteristics, on and off-road, this is the perfect kit.

The front axle will be slightly pulled to the Driver's side following installation of the lift; this can be corrected with the addition of the Carli Adjustable Track Bar. Further, ride quality can be substantially increased with the addition of the Torsion Sway Bar. Carli recommends a 35" tire on a wheel that's no more than 9" wide with 5.5"-6" Backspace. An 18" diameter wheel will be best to ensure optimal ride quality (more rubber = better small bump compliance) and an unloaded tire pressure of 45F/40R is recommended.

This system will NOT be upgradable to any of the 3" Carli Suspension Systems. It's designed to be a solution for customers wanting a quality system with minimal lift and part inclusion. Customers can purchase the Pintop leveling shock package for a huge boost in on-road control and off-road performance as well as ancillary components compatible with this lift height but there isn't compatibility between the 2.5" leveling and 3" lift systems.

Carli recommends slight eccentric bolt compensation to correct caster after the lift as there are no Radius Arm Drops. For this reason, customers may experience a slight bow in the coil spring. Carli did not experience a coil bow in any of their test trucks but it's possible at the 2.5" lift height without a Radius Arm Drop Bracket.

Parts Included: AS-DLVLSPKG-CS20RR-A; CS-DATB-1419; CS-DBLT-1419-R; CS-DLRC-14-LVL-D; CS-DRM-14-20

Features:
  • Fits Up To 35" Tires
  • Increases Wheel Travel To 9.5" Front & 9.5" Rear
  • Does Not Include Leaf Spring Option And Sway Bar
  • Corrosion Resistant Aluminum Bodies Provide Long-Lasting Finish

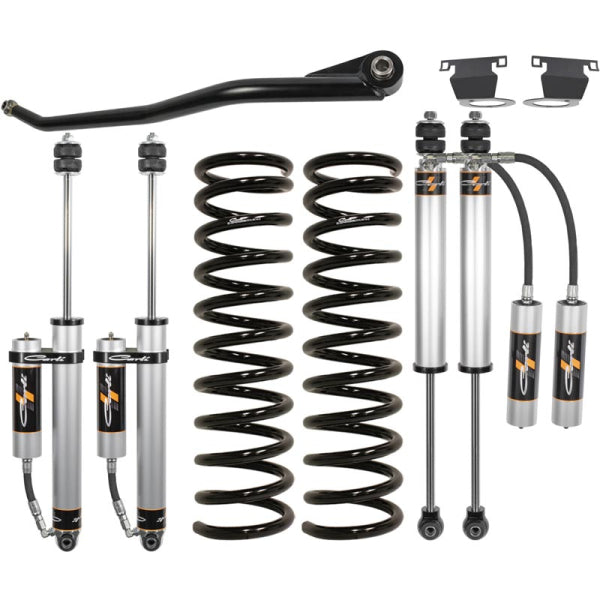

  • System Includes Multi-Rate Front Coil Springs, Front And Rear Shock Package, And Adjustable Track Bar
  • Carli-Tuned Remote Reservoir 2.0 Shocks Provide Comfortable On-Road Feel & Better Off-Road Performance


Required & Optional Parts To Support This System:
Sway Bar Options (REQUIRED): CS-DSBD-14 or CS-DTSB3-1419
Radius Arms: CS-DFRA-14
Steering Stabilizer - High mount: CS-DHMSS-14
Steering Stabilizer - Low mount: CS-DLMSS-14
Ball Joints: CS-DBJP-14
Front Diff Guard: CS-DFDG-14

Note:
This system is NOT compatible with trucks equipped with the factory auto-leveling air assist.
This system will NOT be upgradeable to any other Carli Suspension Systems.
