Carli Suspension XDK278 2.5" Leveling System
SKU CLI-XDK278
Original price
$1,320.00
-
Original price
$1,320.00
Original price
$1,320.00
$1,320.00
-
$1,320.00
Current price
$1,320.00
Product Availability
-
Ships Directly From The ManufacturerShips From Manufacturer
Upgrade the stance of your Dodge Ram 3500 with the Carli Suspension 2.5" Leveling System CS-DLVL-CS-13-D. This system is designed for the customer that keeps their truck on the road with an eye for quality and appreciation for bang-for-their-buck. Utilizing Carli SPEC 2.0" Diameter, Internal Reservoir shocks, Carli developed a tune that delivers all-around comfort and ride quality designed for on-road, in town, highway, and towing/hauling. The 2.5" lift height doesn't require the front or rear geometry correction of their 3" Systems.
At the heart of this system is a 2.5" lift, Linear Rate Coil Spring paired to match travel mono-tube, internal reservoir, Carli SPEC 2.0. These shocks boast 6063 Aluminum construction, anodized body for corrosion resistance, 5/8" hardened steel chrome plated shaft, full serviceability & rebuilding ability and are built with 1-peice bushings in the 6061 Billet rod-ends. These shocks are specified with a premium 5WT oil to balance lubricity, consistent damping and the widest available range in temperature variation.
The rear shocks are also included with this system and have been custom tuned to maximize the ride quality for the factory rear coil springs. As the rear springs remain unmodified, load capacity is maintained while predictability is improved. For those that aren't looking for a massive increase in travel or big shocks but still desire a level stance and improved ride quality and handling characteristics, this is the perfect kit.
The front axle will be slightly pulled to the Driver's side following installation of the lift; this can be corrected with the addition of an Adjustable Track Bar. Further, ride quality can be substantially increased with the addition of the Carli Torsion Sway Bar (not included). Carli recommends a 35" tire on a wheel that's no more than 9" wide with 5.5"-6" Backspace. An 18" diameter wheel will be best to ensure optimal ride quality (more rubber = better small bump compliance) and an unloaded tire pressure of 45F/40R is recommended. The addition of a Carli Low-Mount Steering Stabilizer is recommended for any tire over factory size.
This system will NOT be upgradable to any other Carli Suspension Systems. It's designed to be a solution for customers wanting a quality system with minimal lift and part inclusion. Carli recommends slight eccentric bolt compensation to correct caster after the lift as there are no Radius Arm Drops. For this reason, customers may experience a slight bow in the coil spring. Carli did not experience a coil bow in any of their test trucks but it's possible at the 2.5" lift height without a Radius Arm Drop Bracket.
Parts Included: AS-DLVLSPKG-CS20IFP-A; CS-DLRC-14-LVL-D
Required & Optional Parts To Support This System:
Sway Bar Options (REQUIRED): CS-DTSB3-1419 or CS-DSBD-14
Leaf Spring Options (REQUIRED): CS-DPAP-03-D or CS-DFSP-13-D
At the heart of this system is a 2.5" lift, Linear Rate Coil Spring paired to match travel mono-tube, internal reservoir, Carli SPEC 2.0. These shocks boast 6063 Aluminum construction, anodized body for corrosion resistance, 5/8" hardened steel chrome plated shaft, full serviceability & rebuilding ability and are built with 1-peice bushings in the 6061 Billet rod-ends. These shocks are specified with a premium 5WT oil to balance lubricity, consistent damping and the widest available range in temperature variation.
The rear shocks are also included with this system and have been custom tuned to maximize the ride quality for the factory rear coil springs. As the rear springs remain unmodified, load capacity is maintained while predictability is improved. For those that aren't looking for a massive increase in travel or big shocks but still desire a level stance and improved ride quality and handling characteristics, this is the perfect kit.
The front axle will be slightly pulled to the Driver's side following installation of the lift; this can be corrected with the addition of an Adjustable Track Bar. Further, ride quality can be substantially increased with the addition of the Carli Torsion Sway Bar (not included). Carli recommends a 35" tire on a wheel that's no more than 9" wide with 5.5"-6" Backspace. An 18" diameter wheel will be best to ensure optimal ride quality (more rubber = better small bump compliance) and an unloaded tire pressure of 45F/40R is recommended. The addition of a Carli Low-Mount Steering Stabilizer is recommended for any tire over factory size.
This system will NOT be upgradable to any other Carli Suspension Systems. It's designed to be a solution for customers wanting a quality system with minimal lift and part inclusion. Carli recommends slight eccentric bolt compensation to correct caster after the lift as there are no Radius Arm Drops. For this reason, customers may experience a slight bow in the coil spring. Carli did not experience a coil bow in any of their test trucks but it's possible at the 2.5" lift height without a Radius Arm Drop Bracket.
Parts Included: AS-DLVLSPKG-CS20IFP-A; CS-DLRC-14-LVL-D
Features:
- Fits Up To 35" Tires
- Increases Wheel Travel To 9.5" Front & 11.3" Rear
- Does Not Include Leaf Spring Option And Sway Bar Option
- Corrosion Resistant Aluminum Bodies Provide Long-Lasting Finish

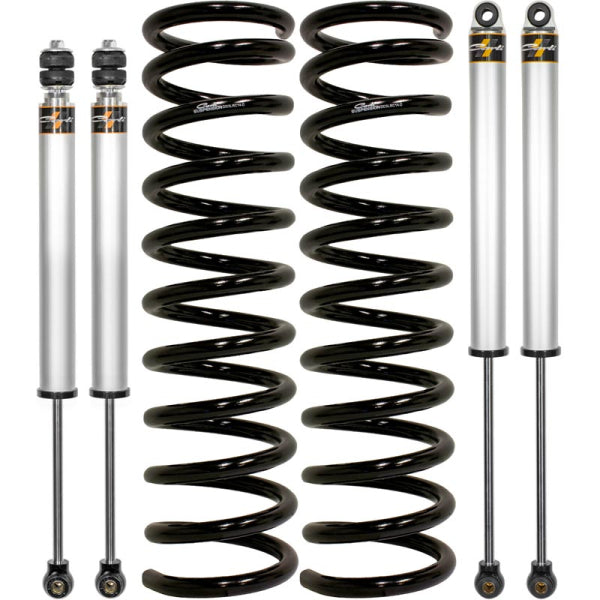

- System Includes Multi-Rate Front Coil Springs, Front And Rear Shock Package
- Carli-Tuned Remote Reservoir 2.0 Shocks Provide Comfortable On-Road Feel & Better Off-Road Performance
Required & Optional Parts To Support This System:
Sway Bar Options (REQUIRED): CS-DTSB3-1419 or CS-DSBD-14
Leaf Spring Options (REQUIRED): CS-DPAP-03-D or CS-DFSP-13-D
