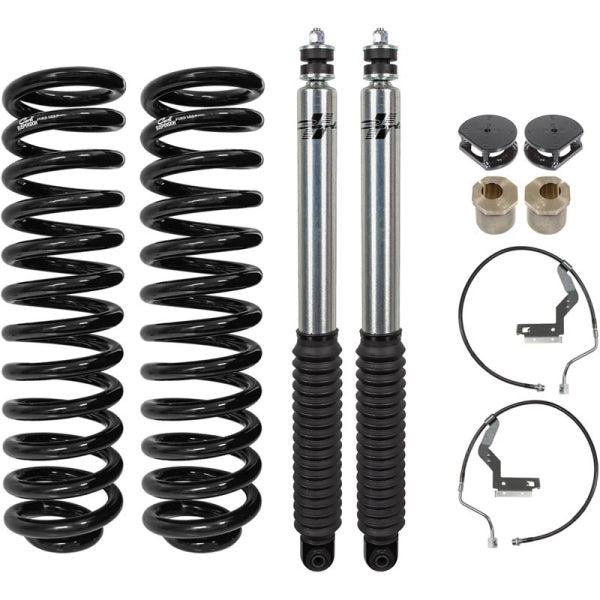

Carli Suspension XDK356 2.5"/3.5" Signature Series Leveling System

SKU CLI-XDK356
Original price $1,210.00 - Original price $1,210.00
Original price
$1,210.00
$1,210.00 - $1,210.00
Current price $1,210.00
Product Availability
  • Ships Directly From The Manufacturer
    Ships From Manufacturer
Get Carli Suspension 2.5"/3.5" Signature Series Leveling System CS-FLVL-SIG-17 and upgrade your Ford F-250/350. The Leveling System was designed for people seeking a leveled vehicle with more performance and ride quality than a generic spacer lift. The included, front, Carli Signature Series Shocks are longer to accommodate the extended travel. When designing the shocks, Zinc plating, Clear Coat for corrosion resistance and quality bushings were a must; finished off with boots to protect the shafts.

Your truck will sit 2.5" higher in the front and have more wheel travel thanks to the lighter rate Carli Coil Springs. Extended Stainless Brake Lines firm up braking and ensure there is enough line for the newfound travel. To round off the front end, Carli includes Caster Shims to tighten the steering. Carli recommends adding an Adjustable Track Bar to center the front axle; for those that do not wish to, Carli includes a High-Clearance Bump Stop Drop to keep the springs clear from the contacting the factory bump stop given the slight driver's side shift of a leveled Super Duty without a track bar. The front Sway Bar Geometry will need to be addressed with your choice of a Sway Bar Drop Bracket (more economical, maintains the factory Sway Bar End Links) or the Carli Extended Sway Bar links. The replacement End Links are the only option compatible with a plow bracket.

The front will sit level to the rear and payload is maintained as the rear springs are unaltered in this system.

Wheels and Tires:
Factory Wheels SHOULD NOT be run with oversized tires. They're known to rub the radius arm, sway bar and most concerning - Brake Lines. Factory tires and factory wheels will work without issue but Carli DOES NOT recommend running oversized tires on factory wheels. On the 2.5" Ford Systems, Carli recommends 17"-18" wheels, no more than 9" wide with 5.5" of backspacing with Carli Fabricated Radius Arms or 5" Backspace with factory arms; 5" will require a bit more trimming. Tires, 37"x12.5" will fit with some trimming; 35" will likely fit without trimming. The more rubber, the better the small bump compliance will be at proper inflation pressures.

Required and Optional Parts to support this system:
Sway Bar Options (REQUIRED): CS-FSBD-LVL-1723 or CS-FEL-LVL-17 or CS-FTSB-LVL-17
Radius Arms: CS-FARA-LVL-05
Leaf Spring Options (REQUIRED): CS-FPAP-LVL-17 or CS-FFSP-LVL-17 or CS-FFSP-LVL-17-HD
Leaf Spring Shackle: CS-FSHACKLE-11
Steering Stabilizer - High mount: CS-FHMSS-17
Steering Stabilizer - Low mount: CS-FLMSS-05
Trophy Hitch: CS-FHITCH-1723

Features:
  • Caster Shims
  • Carli Coil Springs
  • High-Quality Bushings
  • 2.5" Front Lift Height
  • Designed For A Leveled Stance
  • Carli Signature Series Shocks
  • Extended Stainless Steel Brake Lines
