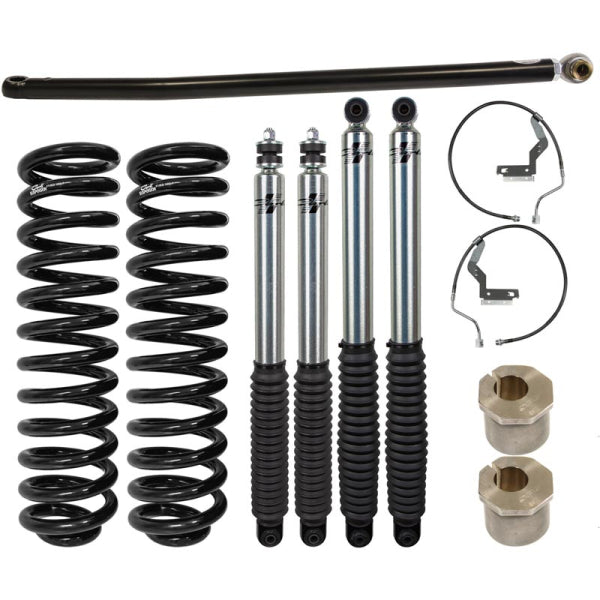

Carli Suspension XDK358 2.5" Signature Series Leveling Starter System
SKU CLI-XDK358
Original price
$1,875.00
-
Original price
$1,875.00
Original price
$1,875.00
$1,875.00
-
$1,875.00
Current price
$1,875.00
Product Availability
-
Ships Directly From The ManufacturerShips From Manufacturer
Upgrade the ride in your Ford F250/F350 Super Duty 4WD with the Carli Suspension 2.5" Signature Series Leveling Starter System CS-FLVL-STR-SIG-05. The Super Duty Starter system is designed for people who want a small suspension lift without the stereotypical ride-quality degradation associated with mass-produced "lift and leveling kits". The included, custom tuned, Carli Signature Series Shocks are longer to accommodate the extended travel. When designing the shocks, Zinc plating, Clear Coat for corrosion resistance and quality bushings were a must; finished off with boots to protect the shafts.
The truck will sit 2.5" higher in the front and have more wheel travel thanks to the taller, lighter rate coil springs. Stainless Brake Lines and an Adjustable Track Bar round off the front end geometry correction while Caster Shims improve on the stock handling. The rear is outfitted with matching custom-tuned Signature Series shocks and is recommended to be optioned with a Progressive Add-a-Pack (not included) lifting it 2" and help keep the truck planted over rough terrain while maintaining factory towing and payload capacity. The 2.5" systems are designed to work with trucks equipped with the 2" rear block. Super Duties equipped with a 3-5/8" tall block from the factory will require the factory 2" tall Block to achieve a leveled stance with the Add-a-Pack. Part Number: 7C3Z-5598-L and 7C3Z-5598-K.
This system was designed with the Progressive Add-a-Pack and should not be run with the Full Progressive Leaf Springs.
Wheels and Tires: Factory Wheels SHOULD NOT be run with oversized tires. They're known to rub the radius arm, sway bar and most concerning - Brake Lines. Factory tires and factory wheels will work without issue but Carli DOES NOT recommend running oversized tires on factory wheels. On their 2.5" Ford Systems, Carli recommends 17"-18" wheels, no more than 9" wide with 5.5" of backspacing with Carli Fabricated Radius Arms or 5" Backspace with factory arms; 5" will require a bit more trimming. Tires, 37"x12.5" will fit with some trimming; 35" will likely fit without trimming. The more rubber, the better the small bump compliance will be at proper inflation pressures. The ride will firm up as you go larger in wheel diameter.
Required and Optional Parts to support this system:
Radius Arms: CS-FARA-LVL-05
Leaf Spring Options (REQUIRED): CS-FPAP-05 or CS-FFSP-LVL-05 or CS-FFSP-LVL-05-HD
Steering Stabilizer - Low mount: CS-FLMSS-05
The truck will sit 2.5" higher in the front and have more wheel travel thanks to the taller, lighter rate coil springs. Stainless Brake Lines and an Adjustable Track Bar round off the front end geometry correction while Caster Shims improve on the stock handling. The rear is outfitted with matching custom-tuned Signature Series shocks and is recommended to be optioned with a Progressive Add-a-Pack (not included) lifting it 2" and help keep the truck planted over rough terrain while maintaining factory towing and payload capacity. The 2.5" systems are designed to work with trucks equipped with the 2" rear block. Super Duties equipped with a 3-5/8" tall block from the factory will require the factory 2" tall Block to achieve a leveled stance with the Add-a-Pack. Part Number: 7C3Z-5598-L and 7C3Z-5598-K.
This system was designed with the Progressive Add-a-Pack and should not be run with the Full Progressive Leaf Springs.
Wheels and Tires: Factory Wheels SHOULD NOT be run with oversized tires. They're known to rub the radius arm, sway bar and most concerning - Brake Lines. Factory tires and factory wheels will work without issue but Carli DOES NOT recommend running oversized tires on factory wheels. On their 2.5" Ford Systems, Carli recommends 17"-18" wheels, no more than 9" wide with 5.5" of backspacing with Carli Fabricated Radius Arms or 5" Backspace with factory arms; 5" will require a bit more trimming. Tires, 37"x12.5" will fit with some trimming; 35" will likely fit without trimming. The more rubber, the better the small bump compliance will be at proper inflation pressures. The ride will firm up as you go larger in wheel diameter.
Required and Optional Parts to support this system:
Radius Arms: CS-FARA-LVL-05
Leaf Spring Options (REQUIRED): CS-FPAP-05 or CS-FFSP-LVL-05 or CS-FFSP-LVL-05-HD
Steering Stabilizer - Low mount: CS-FLMSS-05
Features:
- Caster Shims
- Carli Coil Springs
- High-Quality Bushings
- 2.5" Front Lift Height
- Designed For A Leveled Stance
- Carli Signature Series Shocks
- Extended Stainless Steel Brake Lines
