Carli Suspension XDK422 Torsion Sway Bar (For 0-4" Lift)
SKU CLI-XDK422
Original price
$870.00
-
Original price
$870.00
Original price
$870.00
$870.00
-
$870.00
Current price
$870.00
Product Availability
-
Ships Directly From The ManufacturerShips From Manufacturer
The Carli Suspension Torsion Sway Bar CS-DTSB3-1419 is designed to enhance the ride quality and control of your lifted Ram 2500/3500 4WD. Like any other spring native to a stock Ram HD, the factory Sway Bar is nearly immobile. Conversely, it's the most neglected spring on the vehicle as people fail to look past the front coils and rear springs when looking to "soften" the factory ride. Well, the factory sway bar is essentially a brace locking the axle to the frame. What does this mean? What you hit with one tire is immediately transferred to the other tire and into the frame causing a high frequency reverberation/chatter felt in the cab.
So where does the factory sway bar come in? These trucks are heavy. Even with radius arms (much better for sway control than a 4-Link), a bit of supporting spring rate plays a substantial role in keeping the body roll in check and suspension composed. The Factory sway bar is set up to load the truck to its MAX legal weight and haul it safely - for this application, there's no better bar.
For everyone that's not loaded to the GVWR daily, the Carli Torsion Sway Bar provides the final link lighting the last spring on the truck maximizing the ride quality of the RAM HD Platform. Keeping your factory bar limits comfort, removing it completely makes for questionable control when hauling or emergency maneuvering. After several revisions and years in development, the Carli Torsion Sway Bar Splits the difference perfectly allowing a small amount of differentiation side to side before progressively engaging to add the needed control as leverage is applied. Rip corners in the dirt with surgical precision knowing there's exactly enough rate to hold the body steady while cutting your line through the dirt. Hit the tarmac and enjoy the benefit of the lighter rate bar cruising around town with its on-road feel reminiscent of an independent front suspension - no more chassis reverberation on small bumps and let the suspension dance in the level cab while hitting off-camber driveways.

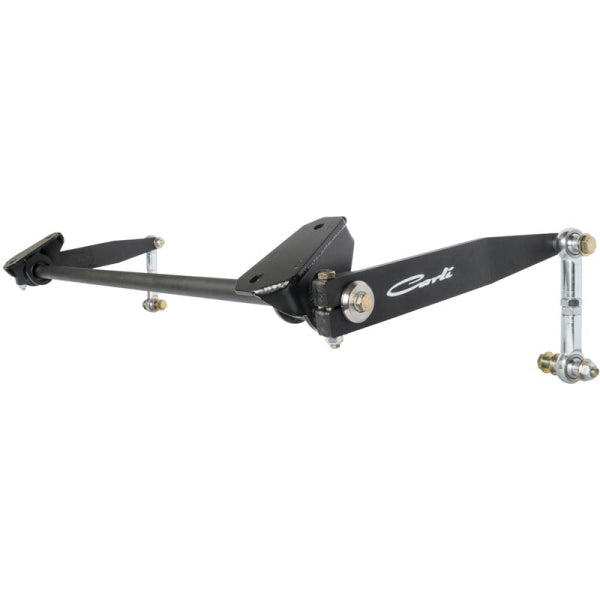

The arms are constructed of doubled and welded 3/8" cold-rolled steel - 3/4" thick at clamp area. The arms are locked to the bar by Carli's in-house machined 17-4 stainless preload washers and Grade 8 pinch Bolts. The bar itself is a custom rate, heat treated torsion bar passing through fabricated brackets that house the extreme duty, service free bushings. Finishing off the assembly are Sway Bar End Links featuring legendary FK Bearing 5/8" Heat-Treated, Chromoly Race Heims. This bar is designed to work with lift systems up to 4". In typical Carli fashion, there are no disconnects on the end links nor multiple holes in the bar to change the leverage applied. This bar is refined to work in conjunction with Carli custom tuned suspensions to throw an exponent on the ride quality. The rate is set, the bar will not hinder articulation justifying a disconnect.
So where does the factory sway bar come in? These trucks are heavy. Even with radius arms (much better for sway control than a 4-Link), a bit of supporting spring rate plays a substantial role in keeping the body roll in check and suspension composed. The Factory sway bar is set up to load the truck to its MAX legal weight and haul it safely - for this application, there's no better bar.
For everyone that's not loaded to the GVWR daily, the Carli Torsion Sway Bar provides the final link lighting the last spring on the truck maximizing the ride quality of the RAM HD Platform. Keeping your factory bar limits comfort, removing it completely makes for questionable control when hauling or emergency maneuvering. After several revisions and years in development, the Carli Torsion Sway Bar Splits the difference perfectly allowing a small amount of differentiation side to side before progressively engaging to add the needed control as leverage is applied. Rip corners in the dirt with surgical precision knowing there's exactly enough rate to hold the body steady while cutting your line through the dirt. Hit the tarmac and enjoy the benefit of the lighter rate bar cruising around town with its on-road feel reminiscent of an independent front suspension - no more chassis reverberation on small bumps and let the suspension dance in the level cab while hitting off-camber driveways.
The arms are constructed of doubled and welded 3/8" cold-rolled steel - 3/4" thick at clamp area. The arms are locked to the bar by Carli's in-house machined 17-4 stainless preload washers and Grade 8 pinch Bolts. The bar itself is a custom rate, heat treated torsion bar passing through fabricated brackets that house the extreme duty, service free bushings. Finishing off the assembly are Sway Bar End Links featuring legendary FK Bearing 5/8" Heat-Treated, Chromoly Race Heims. This bar is designed to work with lift systems up to 4". In typical Carli fashion, there are no disconnects on the end links nor multiple holes in the bar to change the leverage applied. This bar is refined to work in conjunction with Carli custom tuned suspensions to throw an exponent on the ride quality. The rate is set, the bar will not hinder articulation justifying a disconnect.
Parts Included: CS-DTSBBRKT3-1419; CS-DTSBKIT
Features:
- Compatible With 0"-4" Front Lift
- Easily The Best Bang For The Buck Upgrade For Ride Quality
- Allows Front Suspension To Move Freely Without Giving Up Control
- Torsion Bar May Be Black Or Silver Zinc; Depends On Supply-Chain Availability (Not Requestable)
Note:
Requires Removal Of Electronic Sway Bar On Power Wagons
