Synergy 7525-01 Heavy-Duty Steering Kit With Stabilizer Clamp

The Synergy 7525-01 Heavy-Duty Steering Kit With Stabilizer Clamp was designed with the Ford F-250/350 end user in mind. The tie rod & drag link bolt directly into the stock location for an immediate upgrade in steering strength and feel. There are no wheel size requirements; factory wheels and tires are 100% compatible. The upgraded tie rods are made from heat treated 1.5" 4130 chromoly for maximum strength. The drag link is bent to maximize clearance and features 1.5" 1026 DOM USA made steel tubing. The steering kit comes with the Synergy CNC machined steering stabilizer clamp (4050-50) that retains use of the factory steering stabilizer, as well as the use of other aftermarket stabilizers. In addition, the stabilizer clamp is zinc plated for maximum corrosion resistance.

Features:

• Eliminates Unwanted Drag Link Flop
• Tie Rod Is Over 40% Stronger Than The Stock Tie Rod
• Offers A More Direct Connection To The Road Compared To Stock
• Synergy Tie Rod Ends Feature Zerk Fittings And Are Serviceable
• Drag Link Is CNC Formed From 1.50 Inch X .250 Wall 1026 DOM Tubing
• Drag Link And Tie Rod Are Bent For Suspension Articulation Clearance
• Compatible With Stock Wheels And Tires With Correct Tie Rod End Adjustment
• Improves Strength And Steering Feel And Eliminates Any Chance Of Bending.
• Includes Synergy HD Metal On Metal Tie Rod Ends With Oversized 1-Inch Shank
• Single Plane Tie Rod End Used On The Axle Side To Prevent Unwanted Drag Link Flop
• Abrasion-Resistant Powder Coat Finish For Maximum Durability And Corrosion Resistance
• Drag Link And Tie Rod Are Both Adjustable On The Vehicle Without Needing To Be Removed
• Synergy Heavy Duty Metal On Metal Tie Rod Ends Are Stronger And More Durable Than Stock
• Drag Link And Tie Rod Bolts Into The Factory Mounts With No Additional Wheel Requirements
• Clamp Is CNC Machined From 1020 DOM Material And Zinc Plated For Maximum Corrosion Resistance
• 100% Bolt-On Components Assures An Easy, Trouble Free Installation With The Use Of Basic Hand Tools
• Tie Rod Is CNC Formed From 1.5 Inch X .188 Wall 4130 Chromoly Tubing And Heat Treated After Bending
• Both Ends Of The Bar Use Pinch Bolts Instead Of Jam Nuts To Maximize Clamping Force And Make Adjustments Easier
• Synergy Double Adjuster Sleeve Allows Adjustment Of Drag Link And Tie Rod Length Without Removing It From The Vehicle

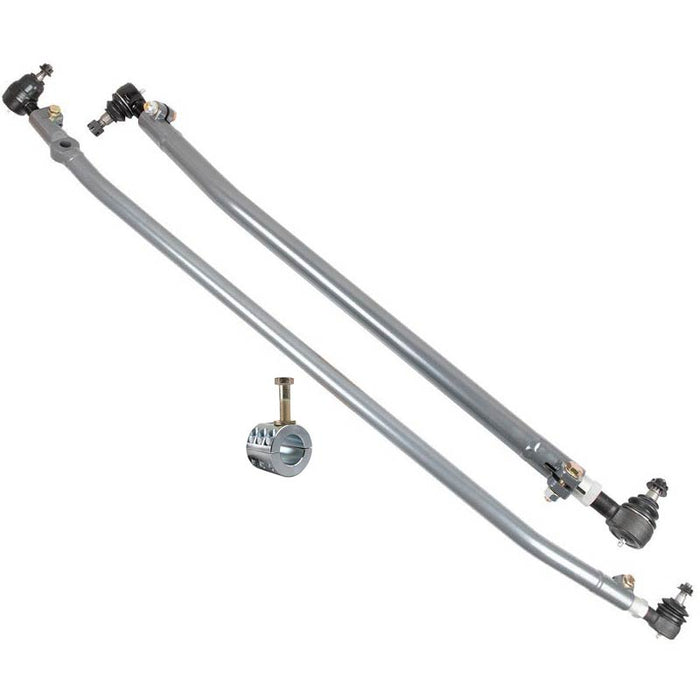

Kit Includes:
(1) Synergy HD Drag Link
(1) Synergy HD Tie Rod
(1) Stabilizer Clamp

Min/Max Length:
Drag Link:
Max extended length: 39.50"
Tie Rod:
Max extended length: 59.5"
Min collapsed length: 56.75"
